NNV50118WE1V
- Certificates & Standards
- RoHs / CISPR15 / CR
| Type of Luminaire | Downlight |
|---|---|
| Surface Mounted DL | |
| Outbow | |
| Set Model No. | NNV50118WE1V |
| Type of Luminaire | Downlight |
|---|---|
| Surface Mounted DL | |
| Outbow | |
| Set Model No. | NNV50118WE1V |
| Type of Light Source | LED |
|---|---|
| Power Input | 8W |
| System Lumen Output | 720 lm |
| System Efficacy | 90 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 30000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 105deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

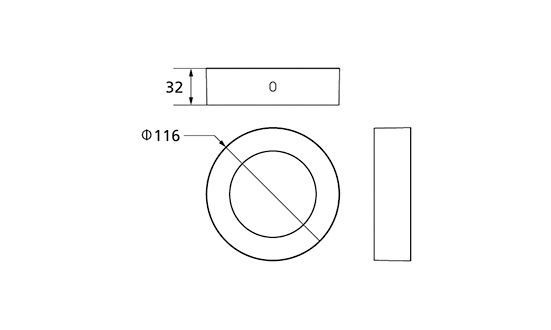

| Dimensions | 116mm*32mm |
| Weight | 0.128 kg |
| Body | ADC12(White) |
| Reflector | |
| Diffuser | PS(White) |
| Trim | ADC12(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
