NFV60072WE1A
- Certificates & Standards
- RoHs
| Type of Luminaire | Baselight |
|---|---|
| Cleanroom Baselight | |
| Cleanroom | |
| Set Model No. | NFV60072WE1A |
| Type of Luminaire | Baselight |
|---|---|
| Cleanroom Baselight | |
| Cleanroom | |
| Set Model No. | NFV60072WE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 40W |
| System Lumen Output | 4000 lm |
| System Efficacy | 100 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.95 |
| Lifetime | 50000H(L70) |
| CCT | 5000K |
| CRI | |
| SDCM | <5 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 120deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 40 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | |

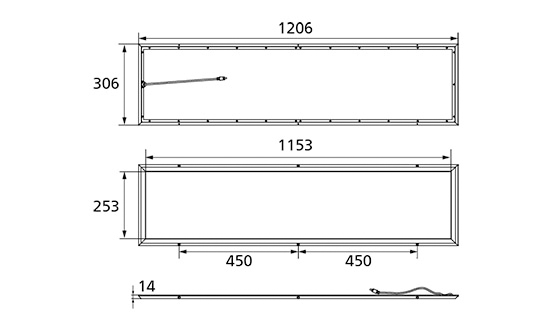

| Dimensions | 306mm*1206mm*14mm |
| Weight | 2.44 kg |
| Body | Aluminum |
| Reflector | |
| Diffuser | PS |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
