NFV40203WE1A
- Certificates & Standards
- RoHs
| Type of Luminaire | Baselight |
|---|---|
| Linear Light | |
| Pro Line Series | |
| Set Model No. | NFV40203WE1A |
| Type of Luminaire | Baselight |
|---|---|
| Linear Light | |
| Pro Line Series | |
| Set Model No. | NFV40203WE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 14W |
| System Lumen Output | 1260 lm |
| System Efficacy | 90 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 3000K |
| CRI | 90 |
| SDCM | <5 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | 19 |
| Glare Cut Angle | |

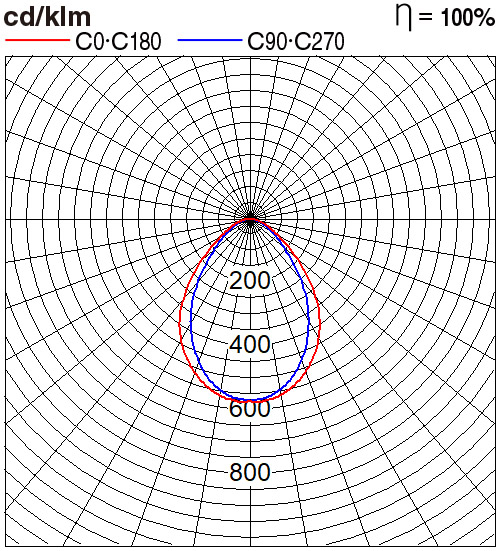

| Beam Angle | 75deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅰ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

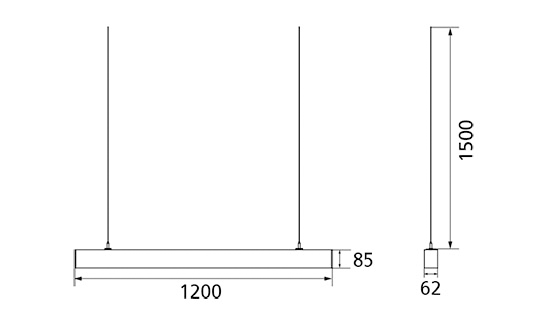

| Dimensions | 62mm*1200mm*85mm |
| Weight | 2.6 kg |
| Body | Aluminum (White) |
| Reflector | |
| Diffuser | PC |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | Body color:White |
Spec and certification may change without notice.
