NNFC4034088
- Certificates & Standards
- RoHs / TISI
| Type of Luminaire | Batten |
|---|---|
| Waterproof Batten | |
| Ex 2G | |
| Set Model No. | NNFC4034088 |
| Type of Luminaire | Batten |
|---|---|
| Waterproof Batten | |
| Ex 2G | |
| Set Model No. | NNFC4034088 |
| Type of Light Source | LED |
|---|---|
| Power Input | 18W |
| System Lumen Output | 2300 lm |
| System Efficacy | 128 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | <5 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 65 |
| IK code | |
| Ambient Temperature Range | -20 - 40°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

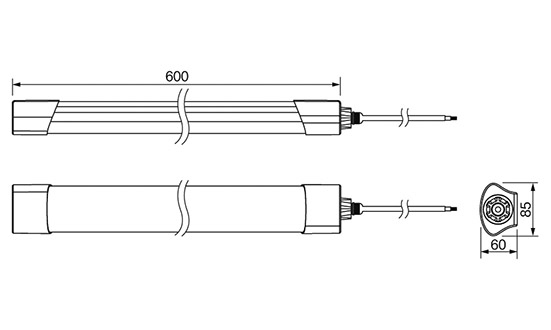

| Dimensions | 85mm*600mm*60mm |
| Weight | 0.6 kg |
| Body | PC(White) |
| Reflector | |
| Diffuser | PC(White) |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
