XNTS62002B101031
- Certificates & Standards
- RoHs
| Type of Luminaire | Downlight |
|---|---|
| Adjustable DL | |
| TOLSO Series | |
| Set Model No. | XNTS62002B101031 |
| Type of Luminaire | Downlight |
|---|---|
| Adjustable DL | |
| TOLSO Series | |
| Set Model No. | XNTS62002B101031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 7.2W |
| System Lumen Output | 645 lm |
| System Efficacy | 90 lm/W |
| Power Voltage | 100-242V |
| Power Factor | 0.9 |
| Lifetime | 40000H(L70) |
| CCT | 3500K |
| CRI | 85 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 32deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5° - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

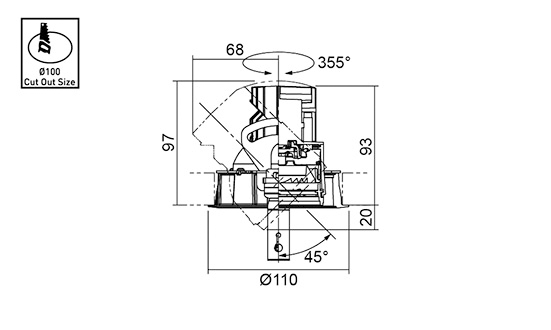

| Dimensions | 110mm*97mm |
| Weight | |
| Body | ADC |
| Reflector | |
| Diffuser | Polycarbonate |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks | Beam Angle: 13°-32° |
Spec and certification may change without notice.
