XND3568SNLZ9031
- Certificates & Standards
- RoHs
| Type of Luminaire | Downlight |
|---|---|
| High Wattage Standard DL (Pro) | |
| J-Series | |
| Set Model No. | XND3568SNLZ9031 |
| Type of Luminaire | Downlight |
|---|---|
| High Wattage Standard DL (Pro) | |
| J-Series | |
| Set Model No. | XND3568SNLZ9031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 29.1W |
| System Lumen Output | 3990 lm |
| System Efficacy | 137 lm/W |
| Power Voltage | 100-242V |
| Power Factor | 0.9 |
| Lifetime | 60000H(L70) |
| CCT | 5000K |
| CRI | 85 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 50deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5° - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

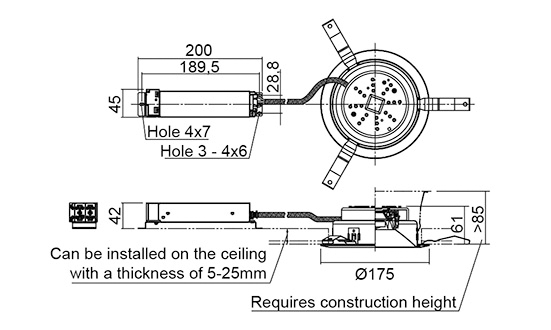

| Dimensions | 175mm*85mm |
| Weight | |
| Body | ADC |
| Reflector | |
| Diffuser | Polycarbonate |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
