NNP80050031
- Certificates & Standards
- RoHs
| Type of Luminaire | Step Light |
|---|---|
| Step Light | |
| Step Light | |
| Set Model No. | NNP80050031 |
| Type of Luminaire | Step Light |
|---|---|
| Step Light | |
| Step Light | |
| Set Model No. | NNP80050031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 3W |
| System Lumen Output | 110 lm |
| System Efficacy | 37 lm/W |
| Power Voltage | 220-240V |
| Power Factor | |
| Lifetime | 30000H(L70) |
| CCT | 6500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 15deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 65 |
| IK code | |
| Ambient Temperature Range | -25° - 50°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

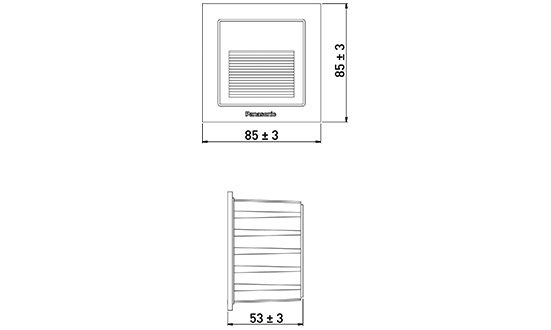

| Dimensions | 85mm*85mm*53mm |
| Weight | 0.202 kg |
| Body | Alumunium Alloy Molding |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
