NNP03025031
- Certificates & Standards
- RoHs
| Type of Luminaire | Spotlight |
|---|---|
| Track Lighting | |
| Track Lighting | |
| Set Model No. | NNP03025031 |
| Type of Luminaire | Spotlight |
|---|---|
| Track Lighting | |
| Track Lighting | |
| Set Model No. | NNP03025031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 12W |
| System Lumen Output | 1000 lm |
| System Efficacy | 83 lm/W |
| Power Voltage | 220-240V |
| Power Factor | |
| Lifetime | 30000H(L70) |
| CCT | 4000K |
| CRI | 90 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | 72deg. |
| Beam Angle | 36deg. |
| Rotation Angle | 350deg. |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -20° - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

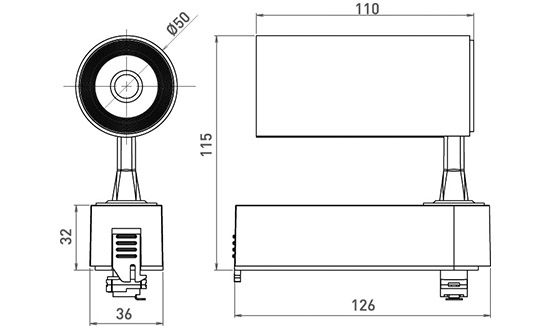

| Dimensions | 50mm*110mm |
| Weight | 0.45 kg |
| Body | ADC |
| Reflector | |
| Diffuser | Polycarbonate |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
